OCL-1407S L3

Mini solar system – with L3m Fairy light (G25)

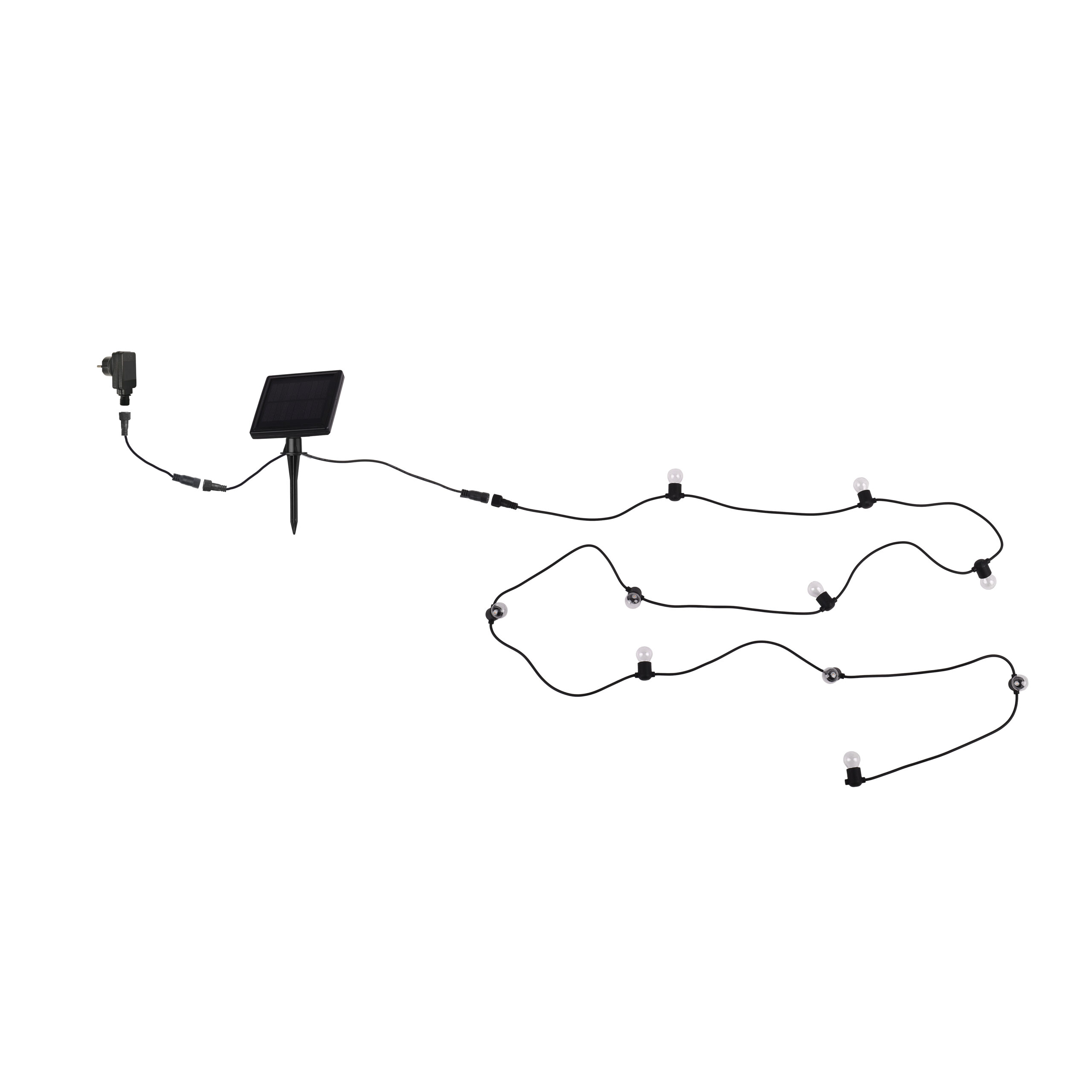

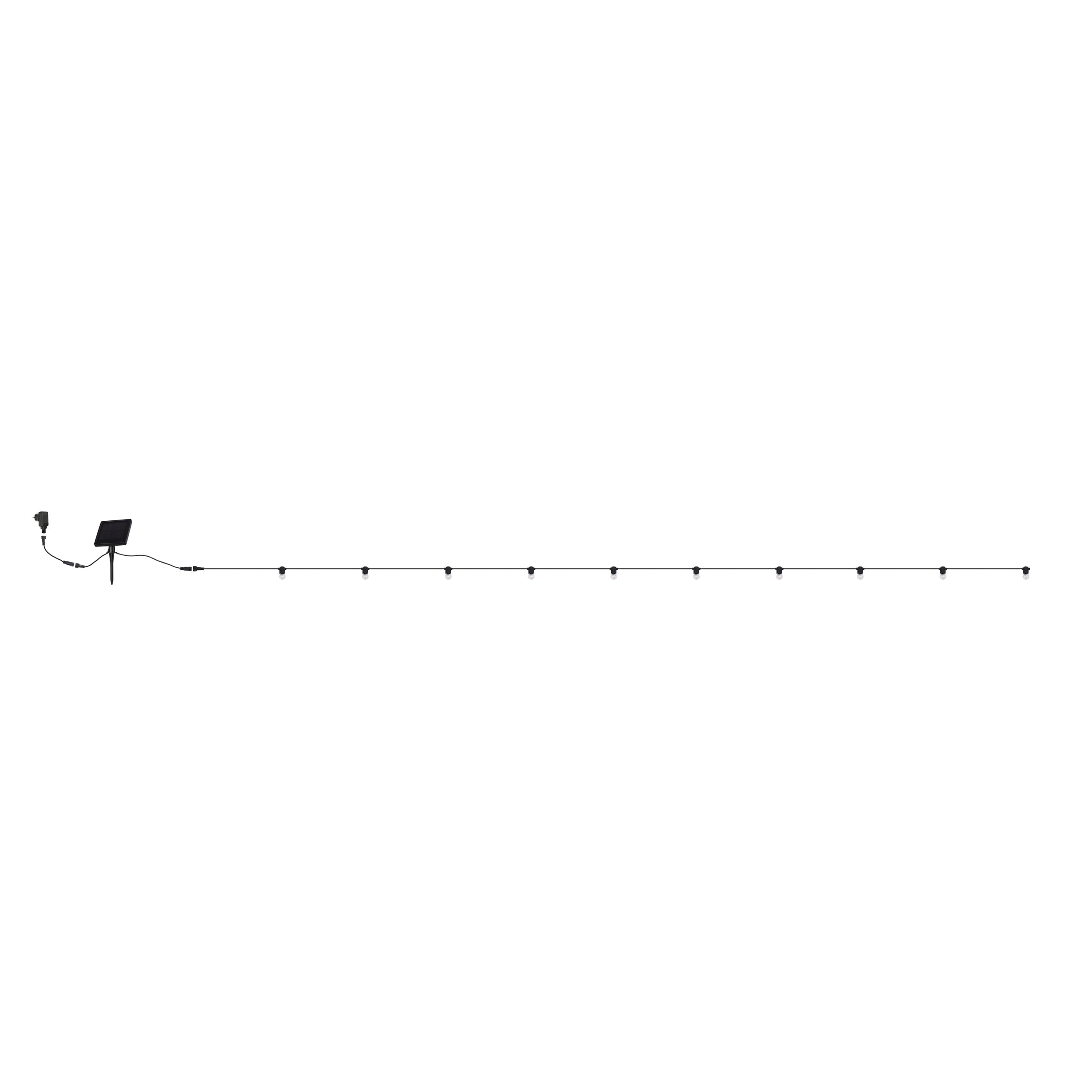

Mini solar system L6m (including A: 5V EU Schuko plug-in driver, B: 1.5W solar panel, C: L2m extension cable, D: L3m fairy light G25)
Input : Solar charging only or both solar and mains supply together in one system.

A: EU Schuko Plug-in driver, IP55 with M16 connector
220~240VAC, 50/60Hz, Constant voltage, 5Vdc,2A, Max10W, Non-dimmable, RoHS compliant, GS and CE approval.

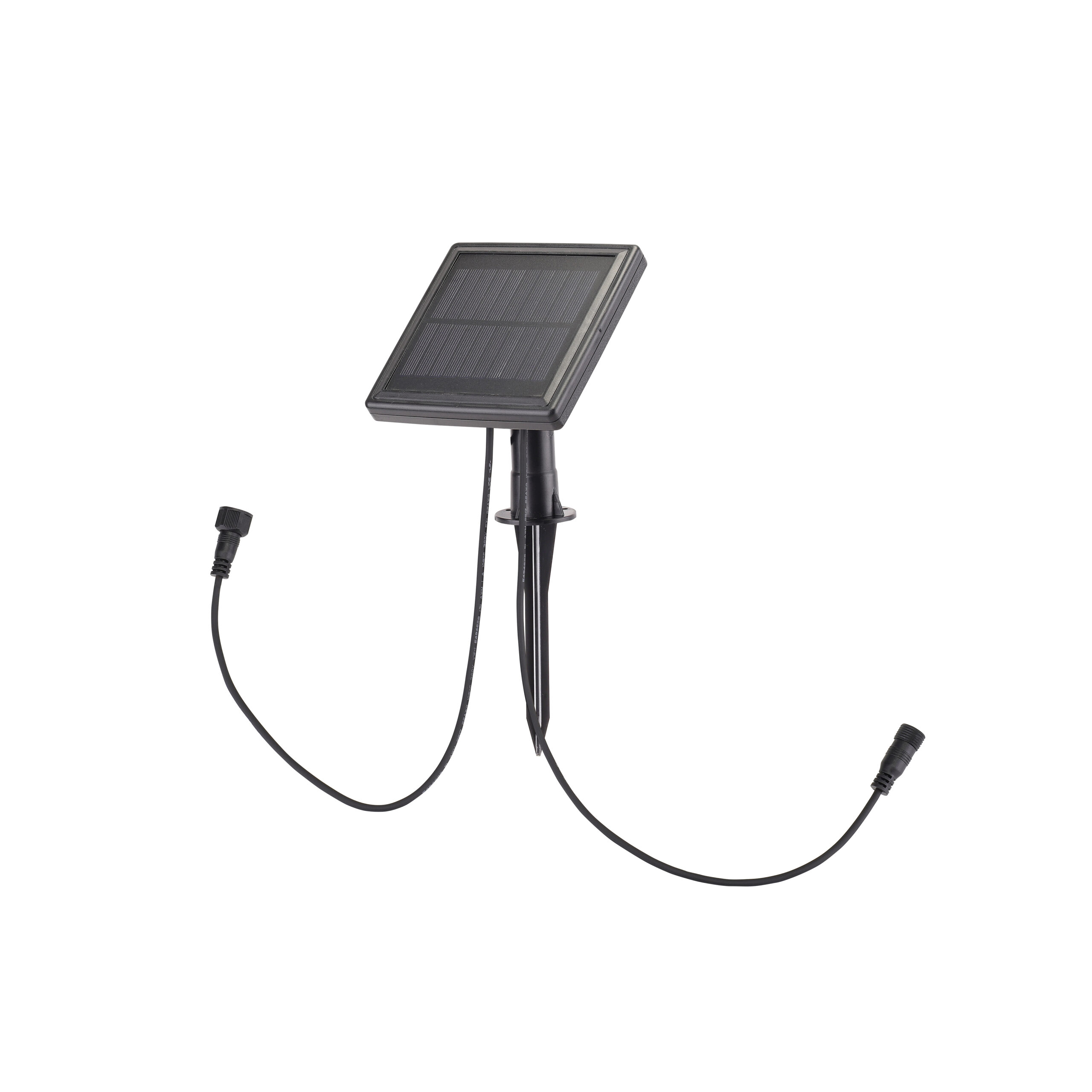

B: Monocrystalline solar panel
Solarcell power: 1.5W IP44
Input : Solar charging or 5Vdc 2A Constant voltage(cith M16 male connector and end cap)
Output power 1W (with M16 female connector), with 1pc x Li-ion 18650 2600mAh batteries. The battery is charged by the solar power only. When the batteries voltage is dropped to 3.0V, the system will automatically switch to the mains power to keep the lamps working.
Solarcell charging time ca.7hours (in persistent sunlight)
DIP On/Off/Timer switch.
Operating time with full power ca.10 hours (@Output 1W)
Timer work time : 6 hours.

C: 2M 2x22AWG Extension Cable IP44, with 1 male M16 connector +1 female M16 connector, female connector with end cap.

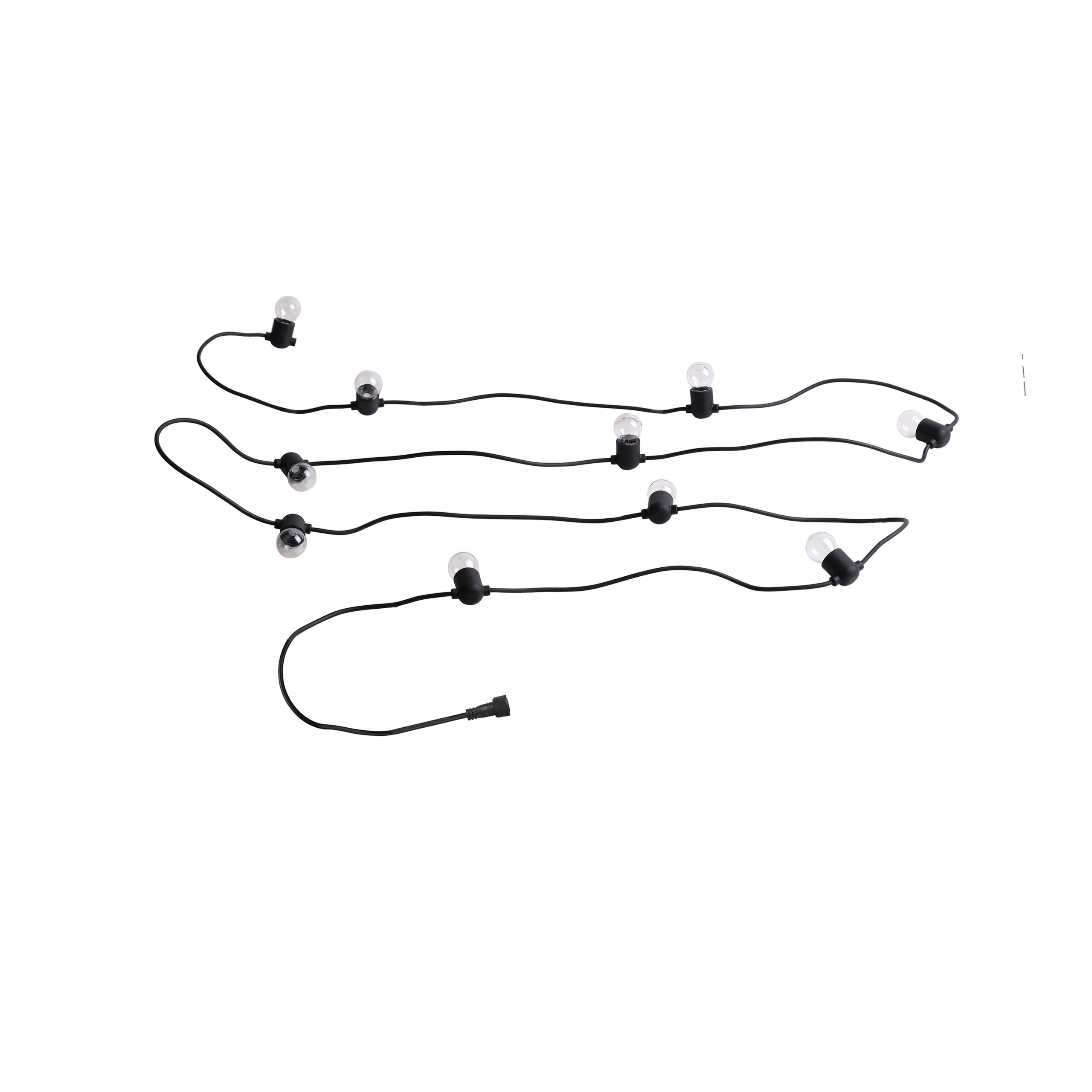

D: L3m fairy light(G25). Frist bulb to M16 male connector L=30cm, 30cm between two bulbs, Total: 3.0M. Input : 3~4Vdc. 10×0.1W, 10x10Lm, 3000K, Ra82, IP44.
